Machine Control Components

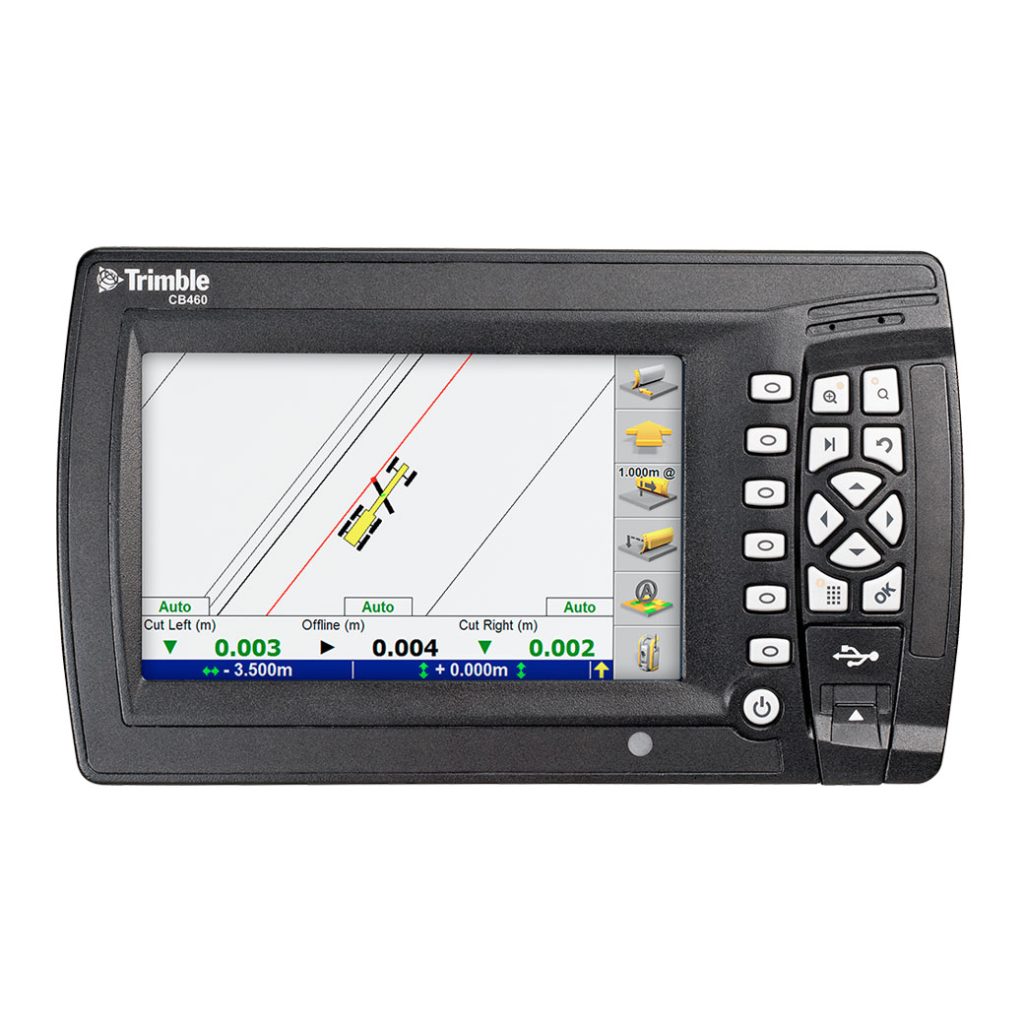

The 7-inch CB460 is designed for use in harsh construction environments. This display gives the operator a full-color graphical display for easy viewing and guidance to grade.

• A large, easy-to-read 7-inch (17.78 cm) full-color LCD display
• Audible tones for real-time grade guidance or warnings and alerts
• Four LED light bars to provide grade guidance at a glance and support for external light bars
• Fast data transfer via Ethernet connection

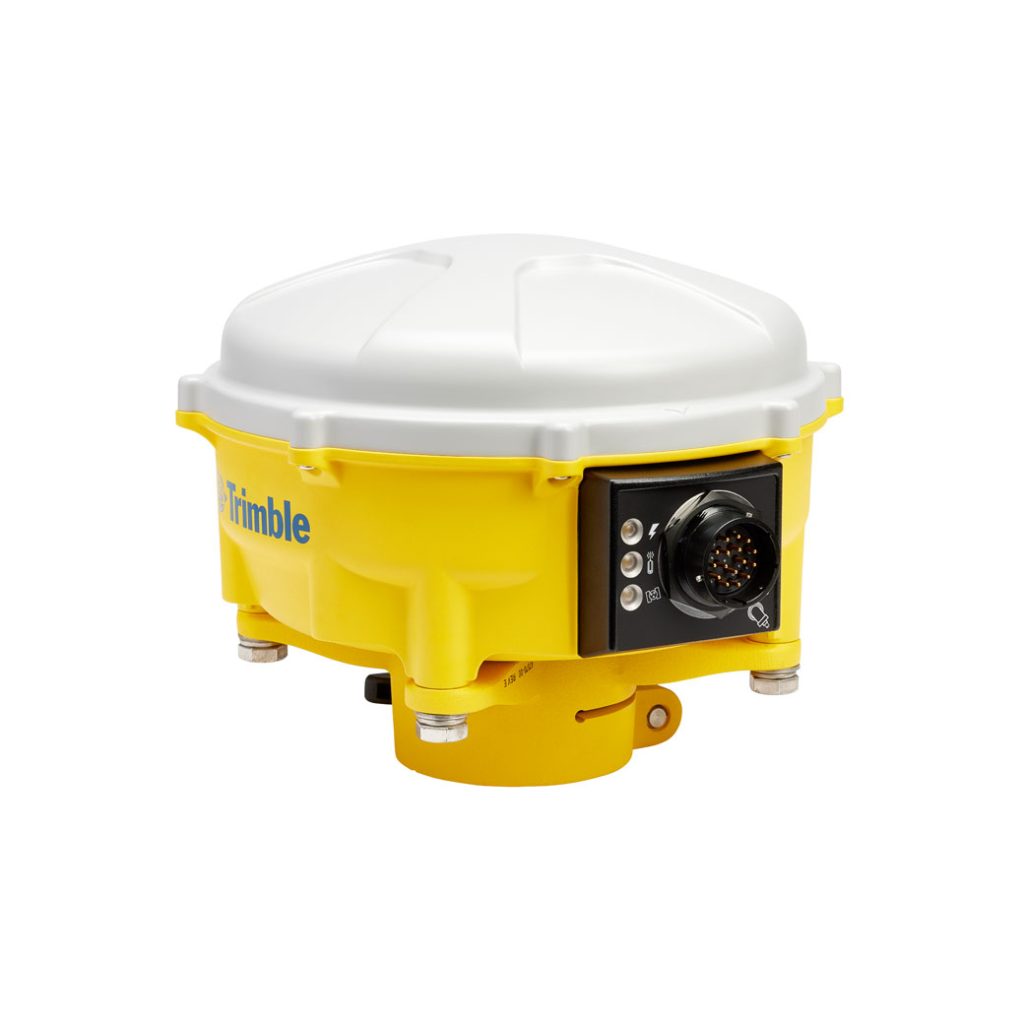

The MS996 contains an integrated GNSS receiver, antenna, and isolation system all in a single, durable housing. It uses the advanced Trimble RTK engine for faster initialisation times when satellite lock is lost and enhanced performance near obstructions.

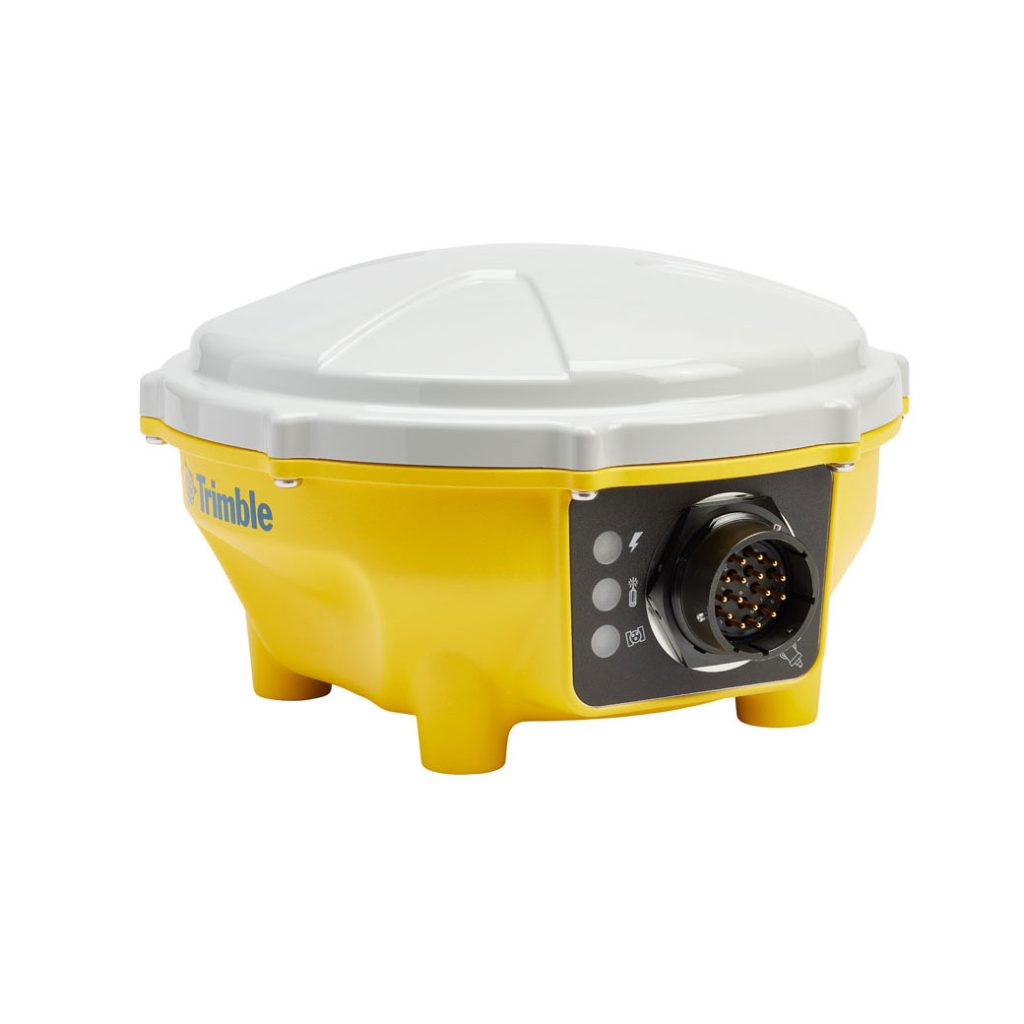

The MS976 offers a cost-effective alternative for contractors who need a highly accurate GNSS receiver at a lower price point. It is optimised for cab or machine body mount only.

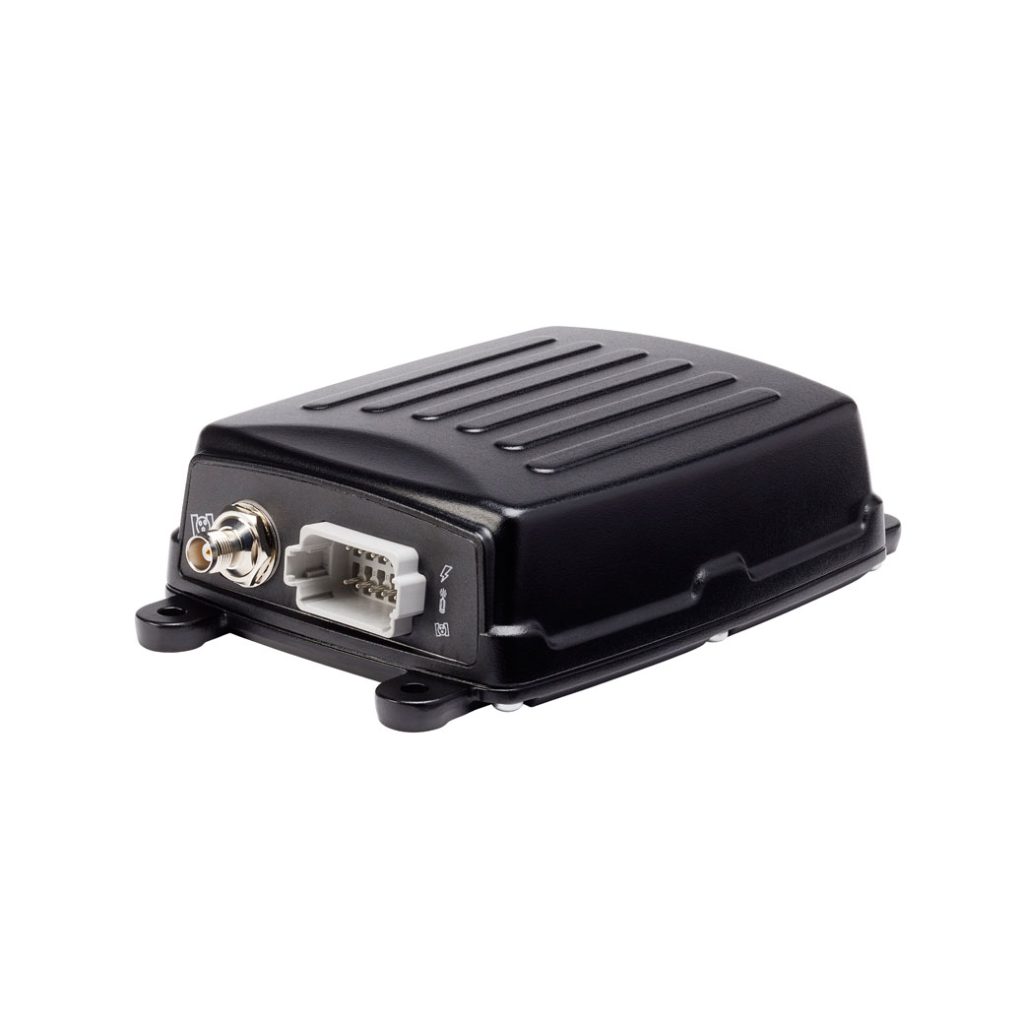

The MS956 is a positioning receiver intended for use with a rugged Trimble Zephyr 3 Antenna. The compact form factor easily fits in the headliner or within cab compartments of heavy equipment. The MS956 is specially designed and tuned to operate through the shock and vibration forces experienced on heavy equipment.

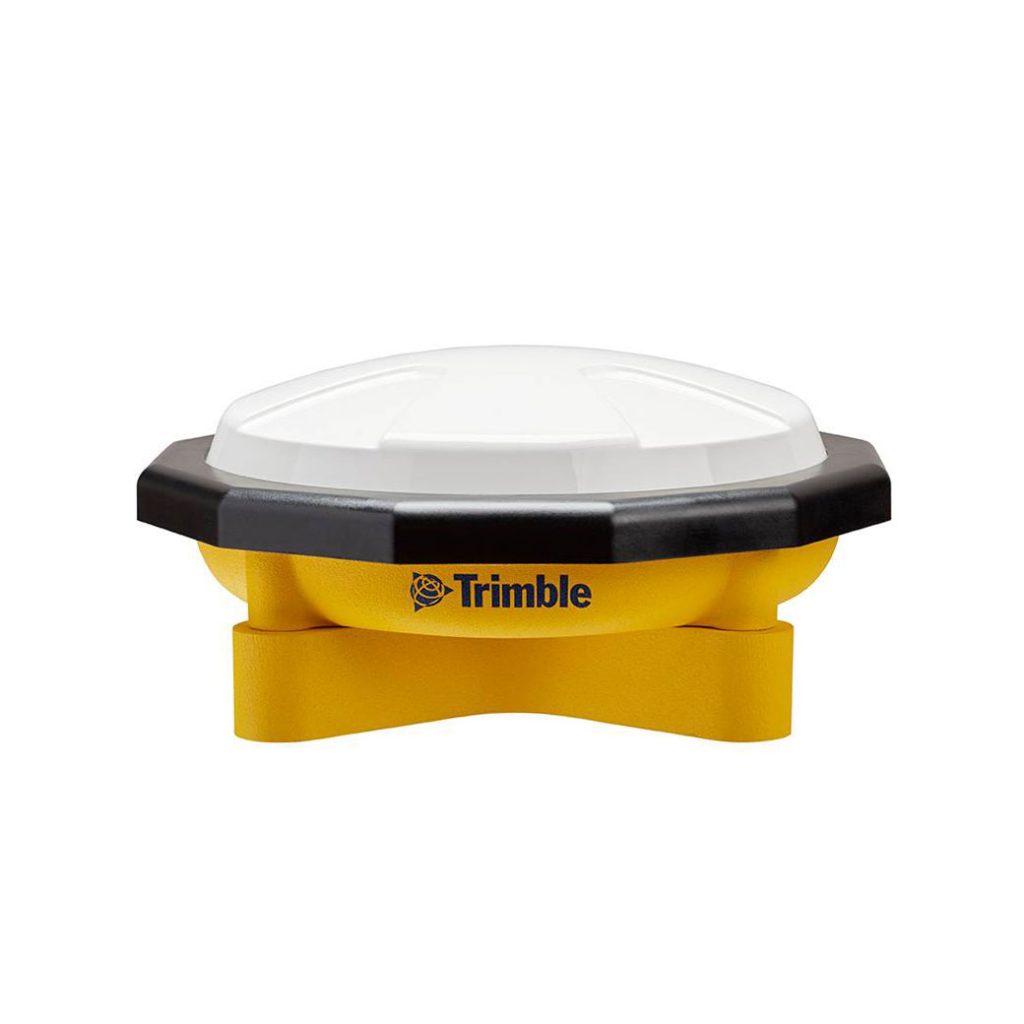

The Zephyr 3 antenna offers full support for current and near-future GNSS signals including GPS, GLONASS, Galileo, BeiDou, OmniSTAR, Trimble RTX, and SABS. Combined with rugged durability, the Trimble Zephyr 3 antenna will be a long-term investment.

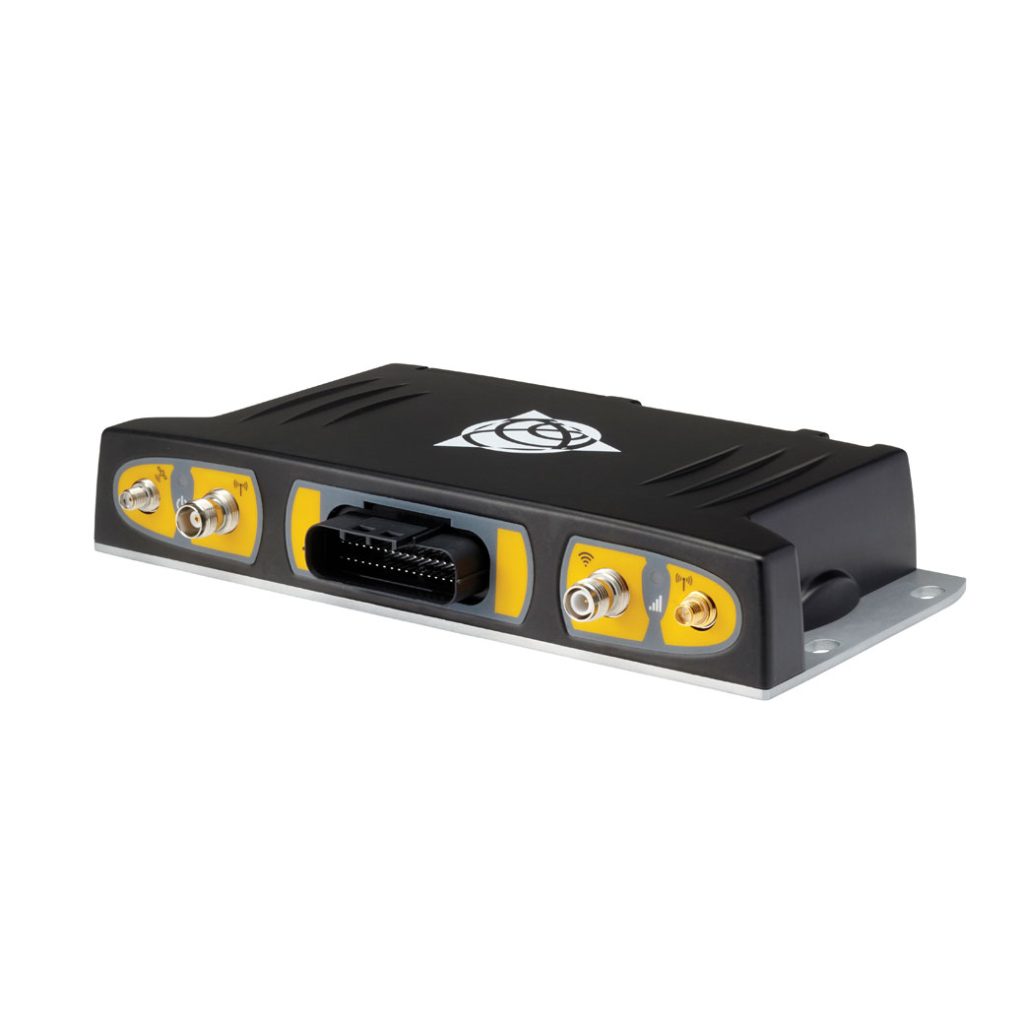

Connect your machine with rugged hardware from Trimble. Featuring both Wi-Fi and cellular connectivity, the Trimble SNM941 Connected Site® Gateway enables wireless data transfer of design files and GNSS corrections, fleet, asset and site productivity information.

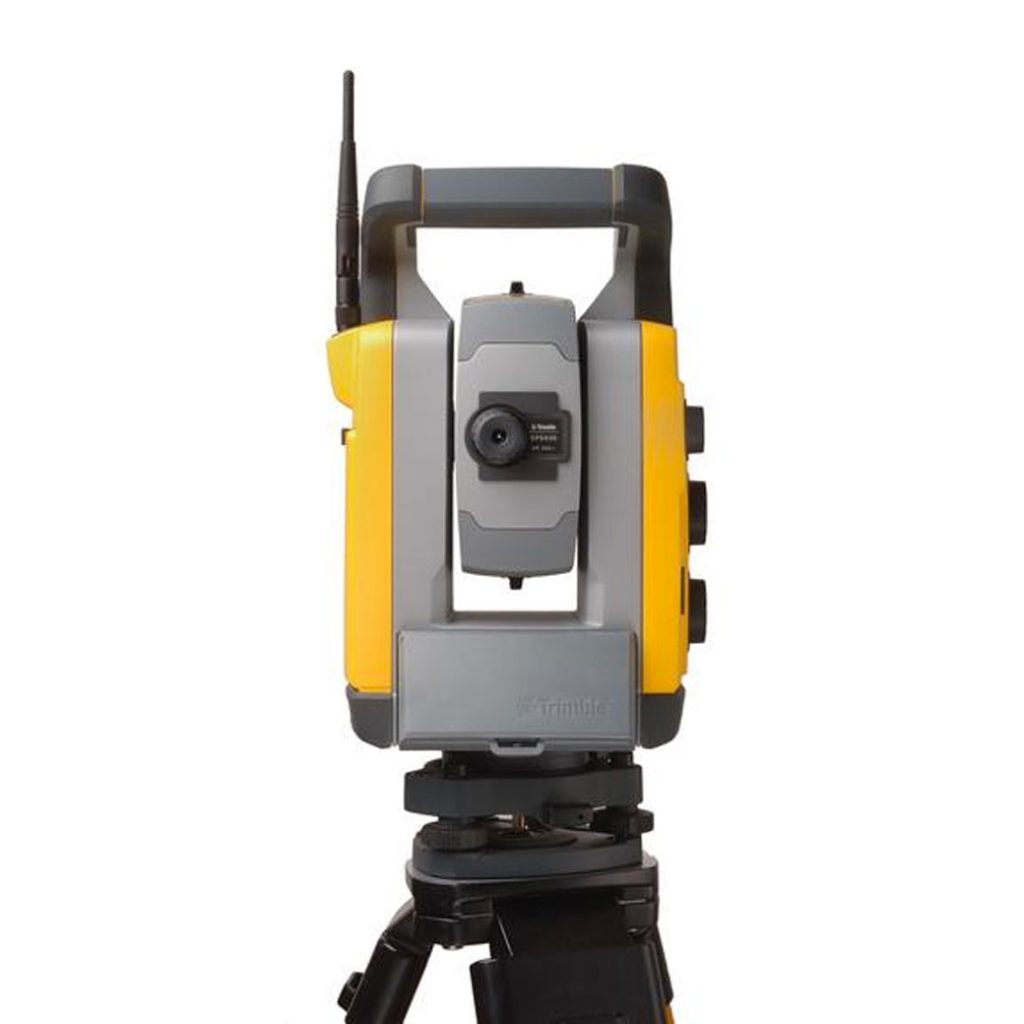

Trimble SPS Series Universal Total Stations can be used for even greater accuracy when performing fine or finished grading, with blade guidance to 2-5 millimeters (0.007 to 0.016 feet).

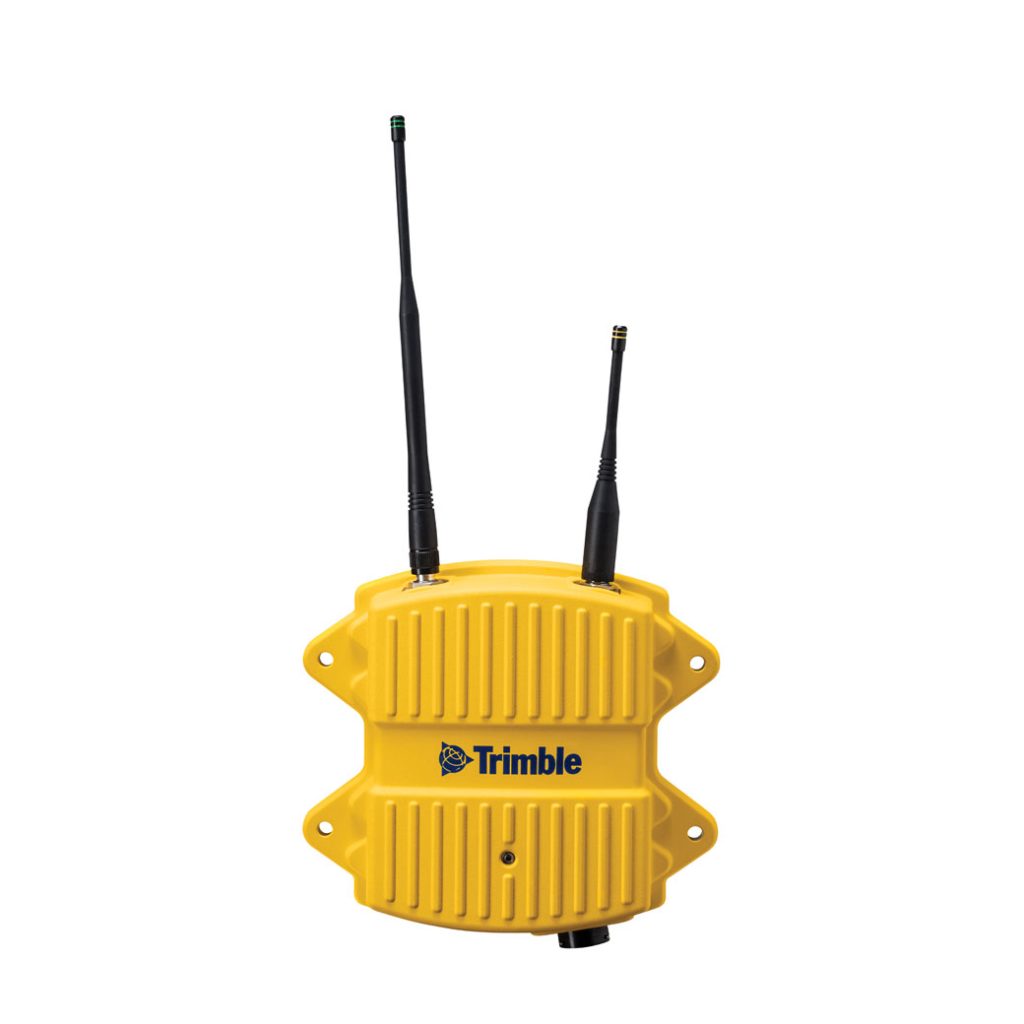

Rugged Trimble on-machine radios offer a modernised platform for communicating with Trimble Universal Total Stations or with a fixed GNSS base station. Available in:

• Single-band 450 MHz, 900 MHz, and 2.4 GHz
• Dual-band 900 MHz + 2.4 GHz and 450 MHz + 2.4 GHz

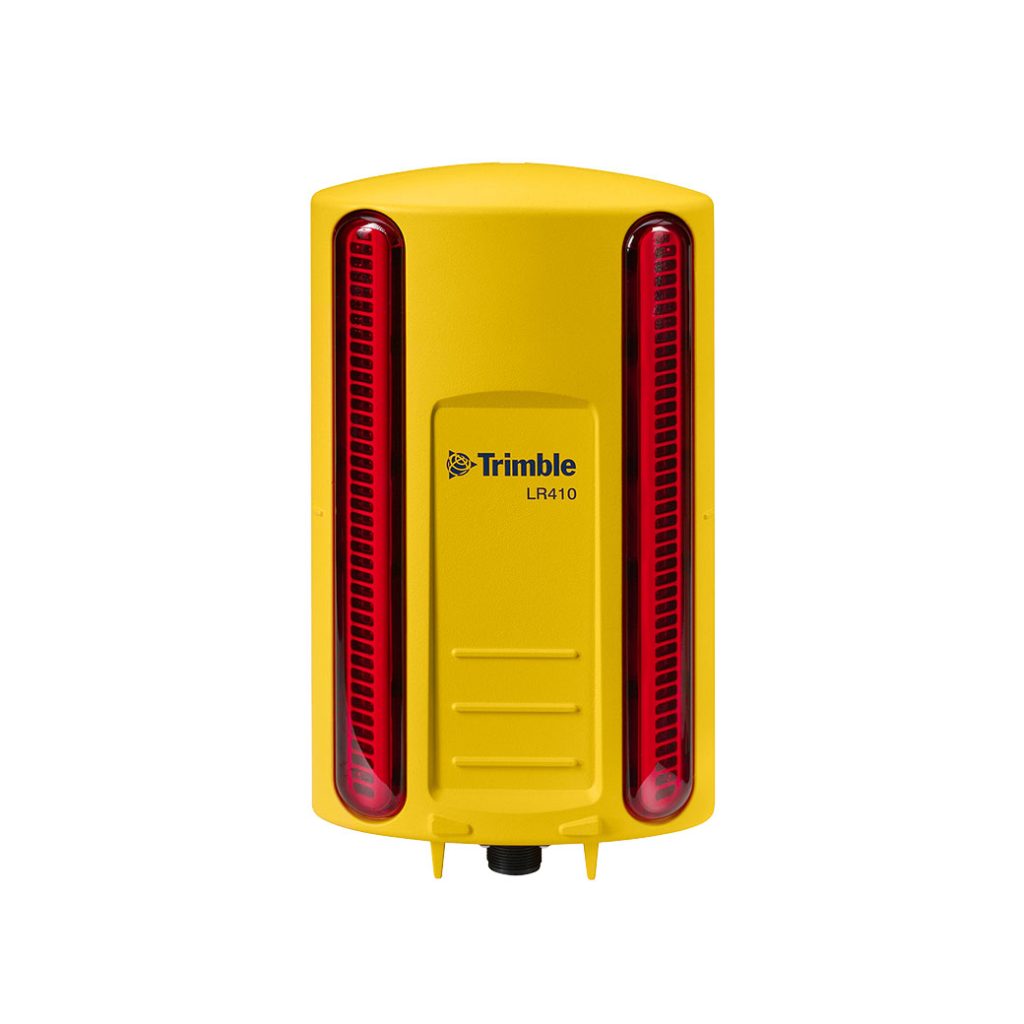

The LR410 is mounted to an electric mast on the blade and connected to the machine hydraulics to control lift to an accuracy of 3-6 millimeters (0.01 to 0.02 feet).

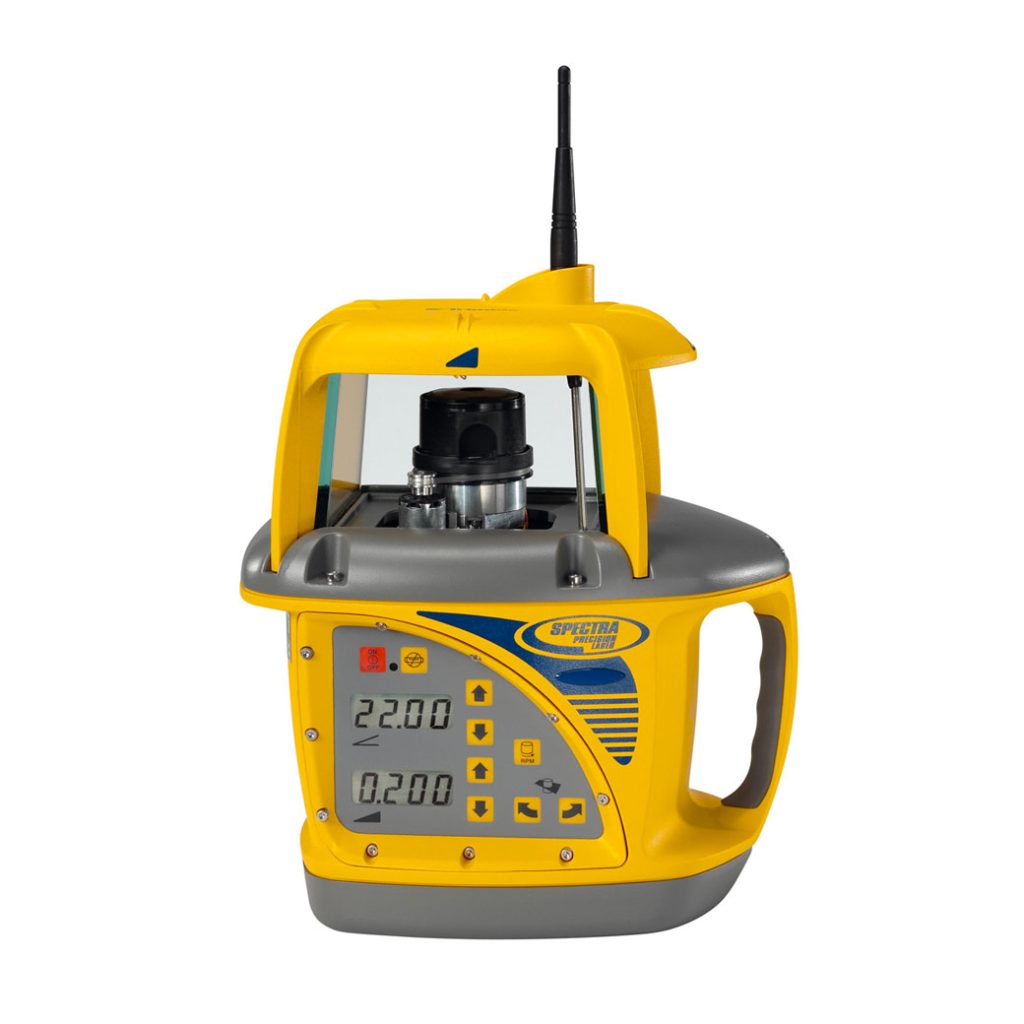

Spectra Precision GL700 dual grade lasers provide years of durable, precise machine guidance with GCS900 2D Grade Control Systems, GCSFlex Grade Control Systems and laser-based compact machine installations. Ideal for site preparation, trenching and pipe laying, fine grading and road construction, GL700 lasers can help you get to grade faster with more accuracy.

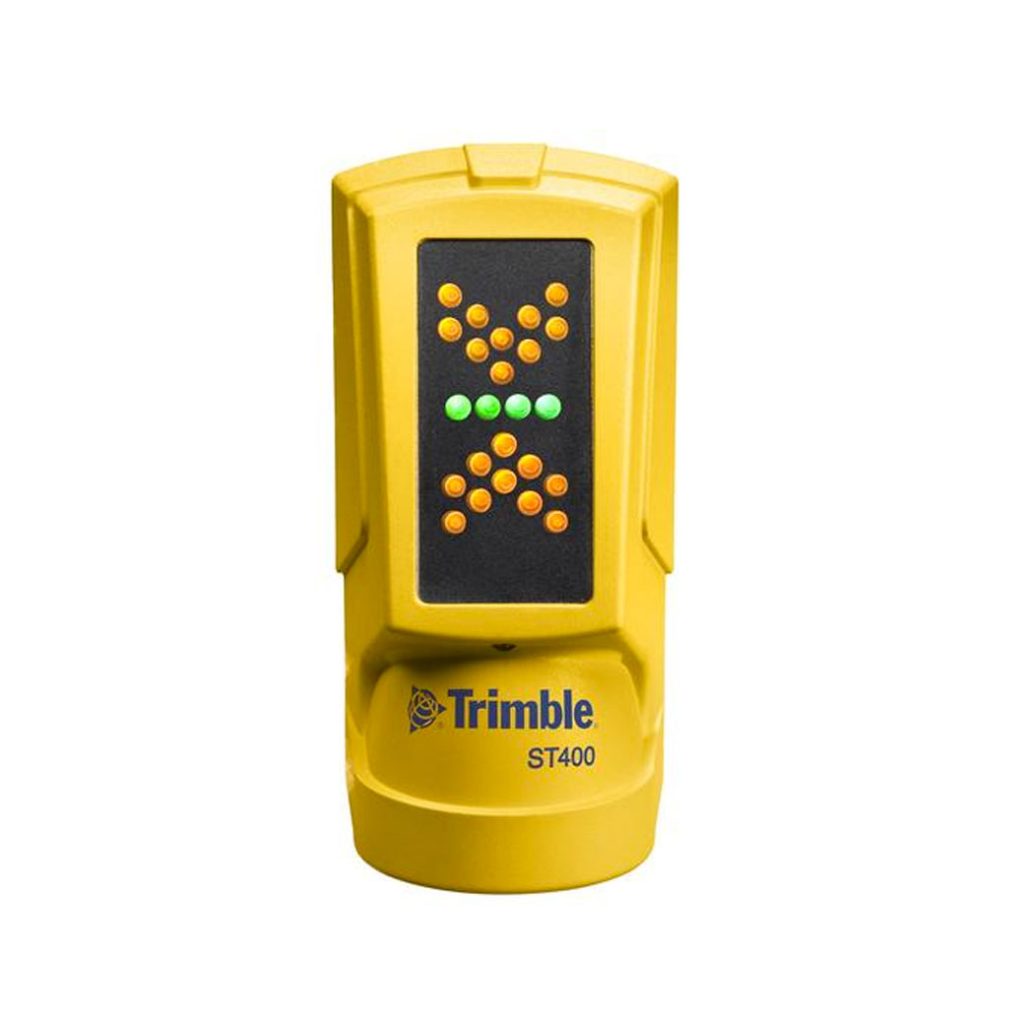

The ST400 is mounted to the blade and uses a physical reference such as curb and gutter, stringline, existing or previous pass as an elevation reference.
